PRODUCT DESIGN

The world's smallest X-ray imaging system. From concept to construction in four months.

Building on early prototypes of the Tribogenics X-Change technology for field replaceable X-ray cartridges, the Mobile Imaging System project demonstrated the capabilities of the technology in the imaging market - the first proof-of-concept of a real market application.

The unit is self-contained and runs on a rechargeable lithium ion battery. It can be deployed anywhere in the world in minutes to provide X-ray imaging of an 8x10in area. From medical imaging on the frontlines or field locations without the infrastructure for conventional high-voltage X-ray imaging machines to security applications including suspicious package identification, the Tribogenics Mobile Imaging System is a flexible and easy to use solution.

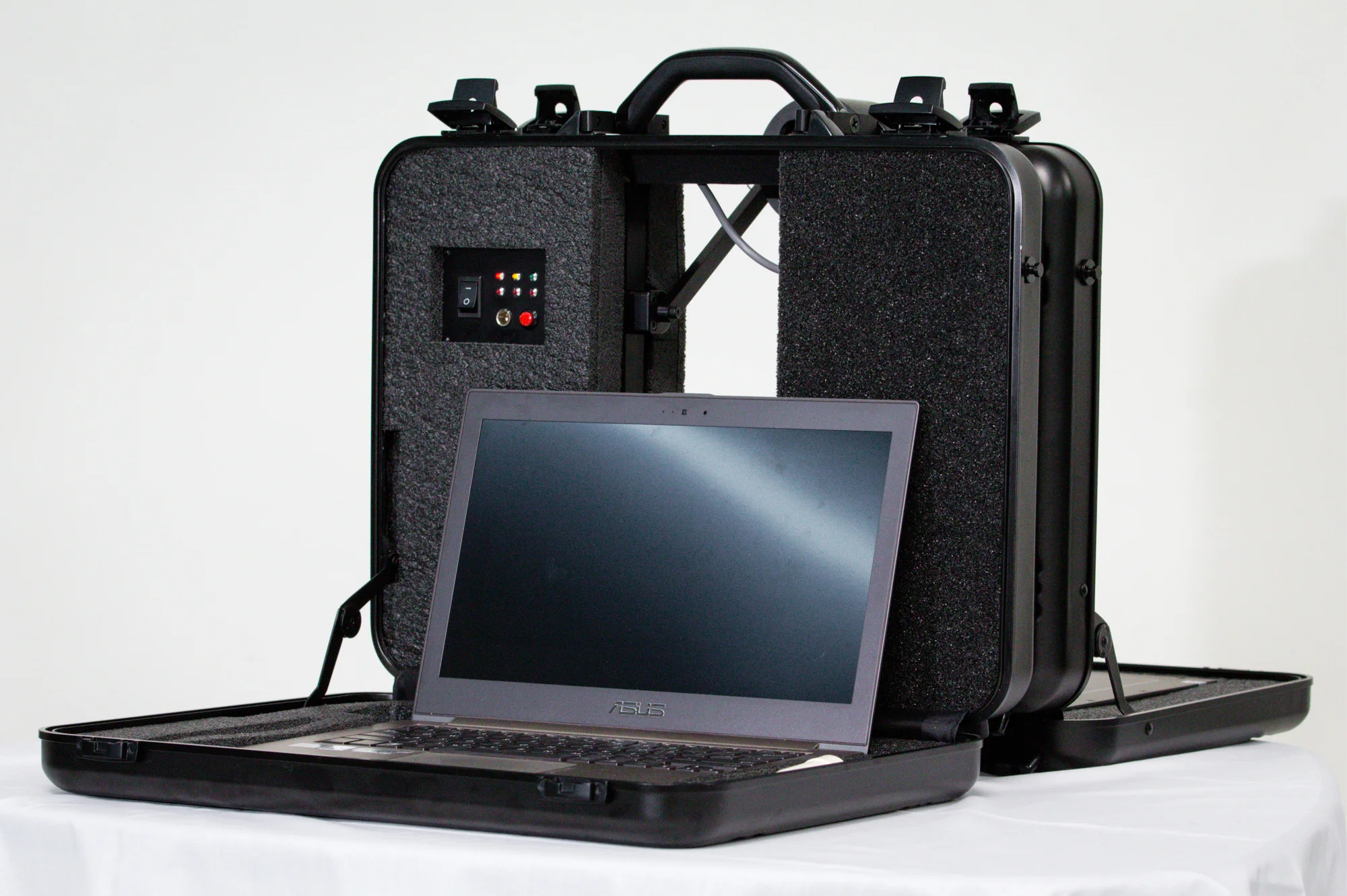

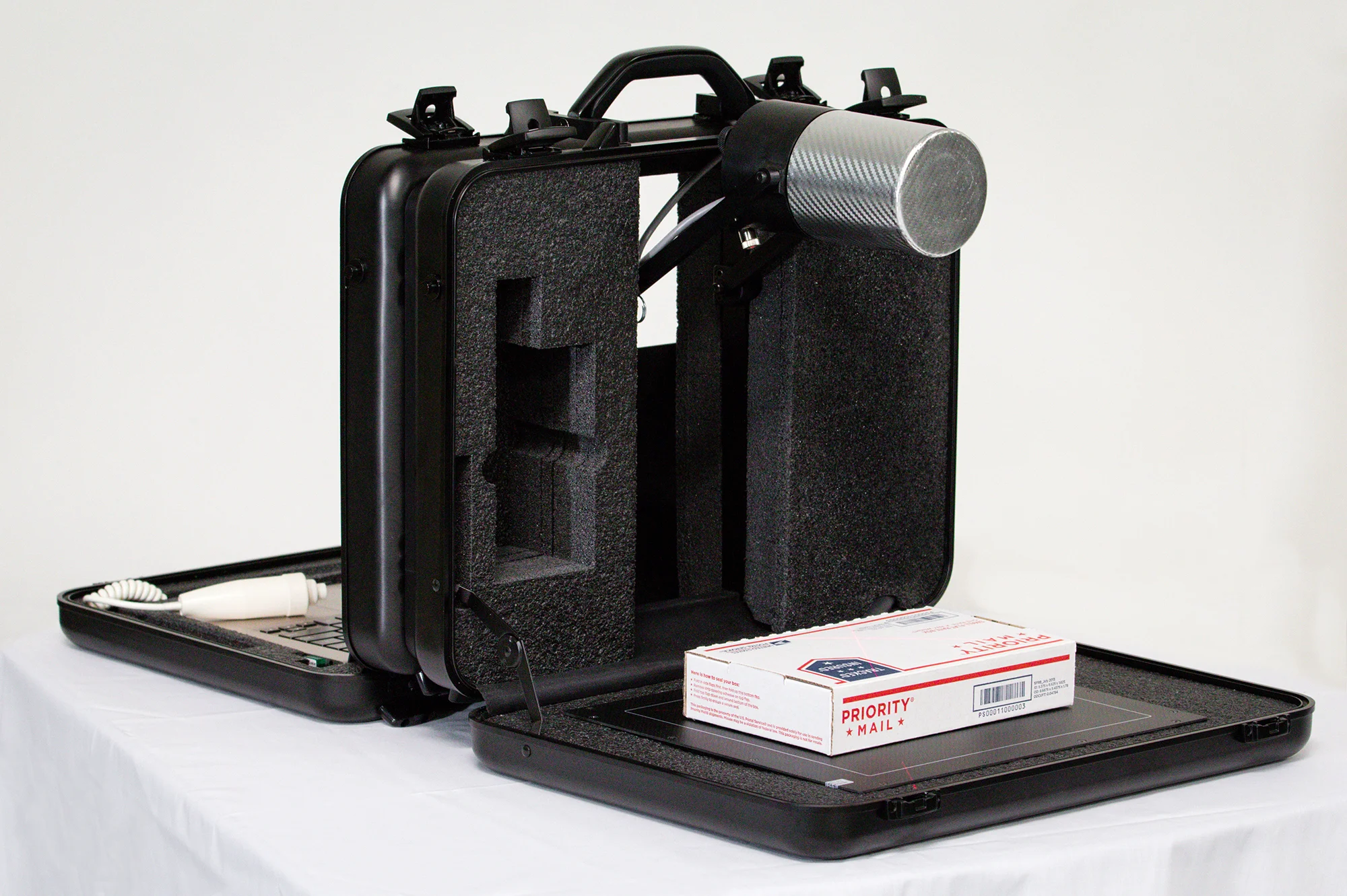

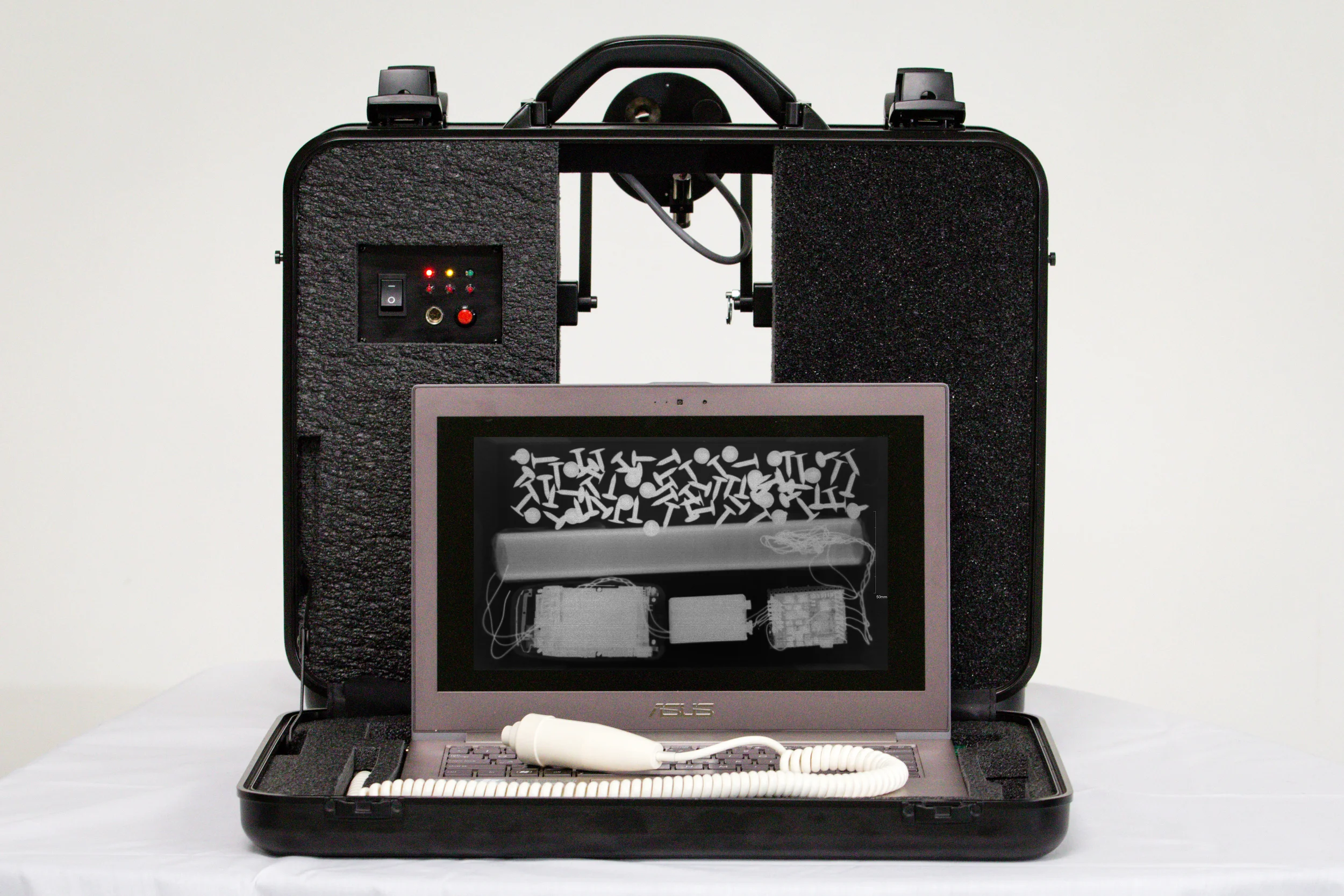

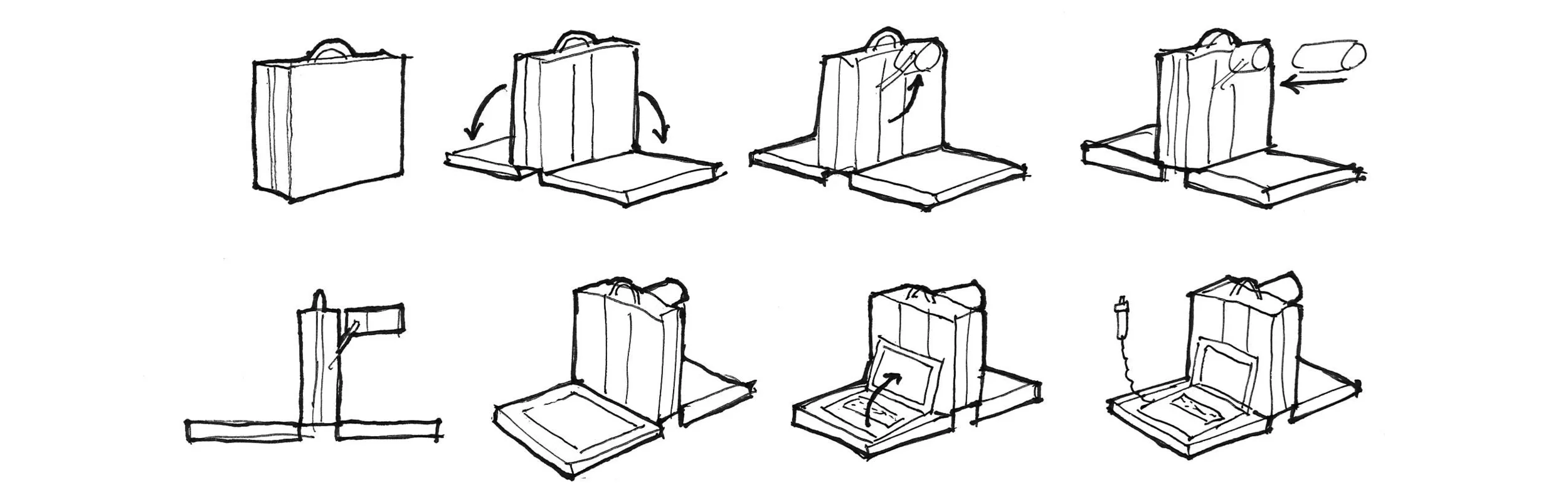

When deployed, the cartridge receptacle pivots easily into position and the shielded Tribogenics X-change cartridge can be inserted. An embedded laptop provides the imaging software interface and a retractable activation switch allows the operator to stand back from the active area when in use.

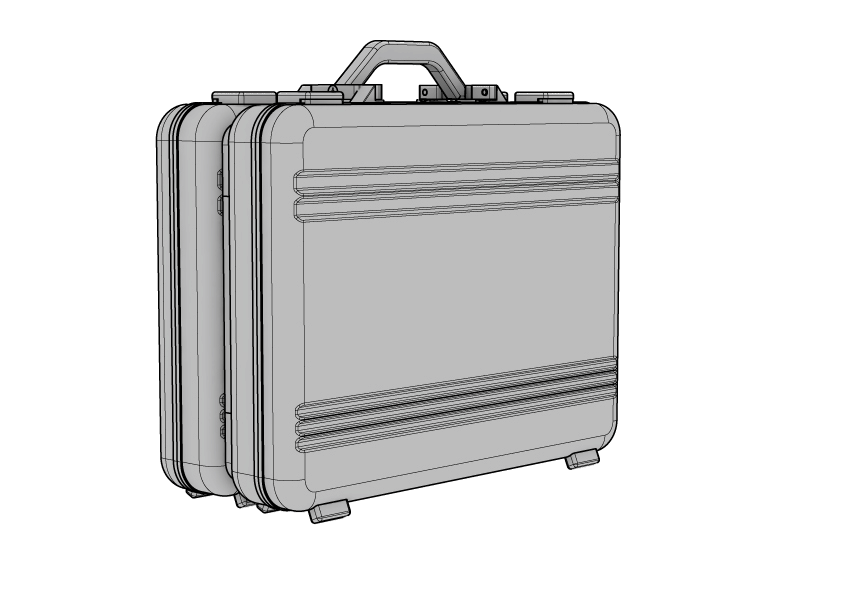

Taking the system on the go is just as easy. Simply remove the cartridge and collapse the receptacle. The case folds closed and the system is ready to go. Constructed from lightweight aluminum and high density foam, the system is durable and easy to carry.
